Performance Suspension Kit - XR1200®

Part Number:

54530-10

2,145.56

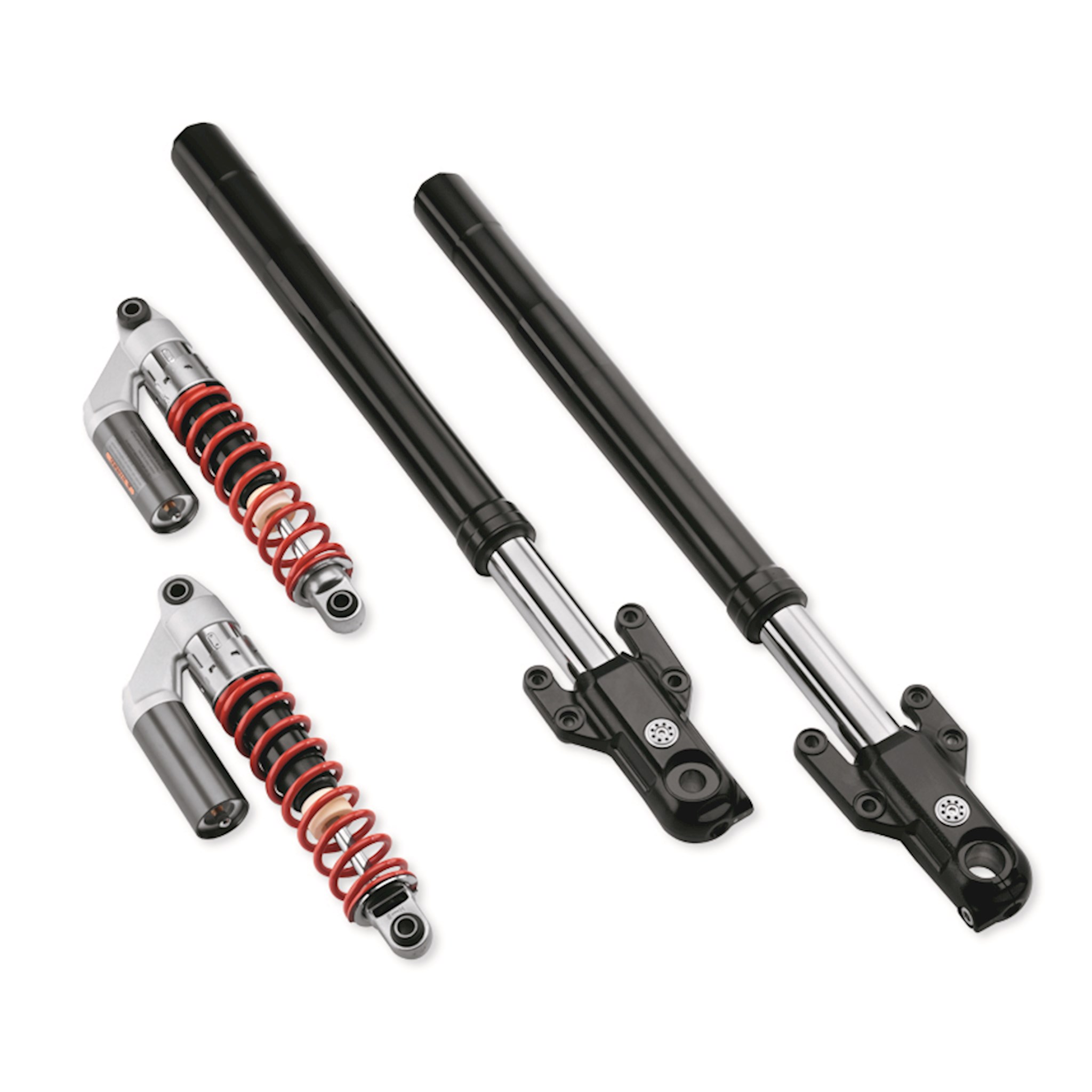

Maximize the canyon-carving ability of your XR1200 motorcycle with this complete Performance Suspension Kit. Fully-adjustable light-weight suspension system features Showa's new Big Piston Front fork (BPF) design. The BPF eliminates many of the internal components used in a cartridge-type fork, simplifying construction and resulting in lighter overall fork weight. The large-diameter of the BPF's internal piston allows a reduction in damping pressure, for better feedback and smoother action. This performance suspension kit also provides a very controlled feeling which leads to more rider confidence. The BPF's rebound and compression damping force settings are easily fine-tuned via two adjuster screws located on top of the fork bolts. The spring pre-load is adjusted via a M5 hex screw on the axle holders. The rear Showa® shocks feature 36mm pistons with piggyback nitrogen-charged reservoirs. The compression damping can be adjusted via a knob on top of the piggyback reservoir. The rebound is adjusted with a thumb wheel on the lower clevis. Rear spring pre-load is also adjustable on the shock for optimum 1G sag. The kit includes one set of Big Piston Front Forks and one set of rear shocks.

This item can only be used on the following Harley-Davidsons.

  • Sportster

    • XR1200 (2009-2010)
    • XR1200X (2011)
