Screamin' Eagle Hydraulic
Cam Chain Tensioner and High-Flow
Oil Pump Upgrade Kit

Part Number:

25284-11

737.54

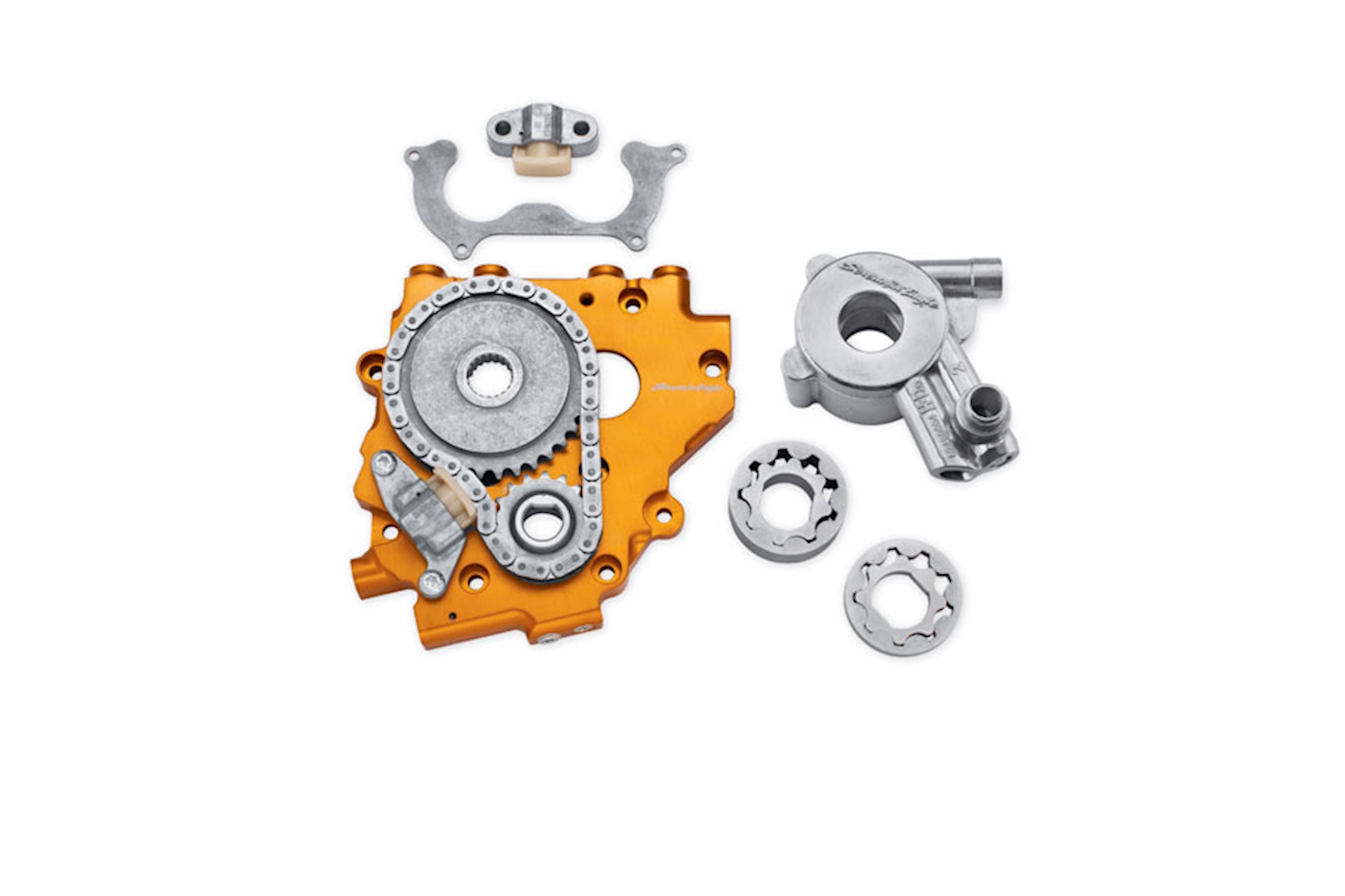

This kit updates the cam chain tensioner of your Twin Cam 88® engine to the latest design, as featured on the Twin Cam 96™ engine. The billet cam support plate has been designed to allow the installation of the Twin Cam 96 hydraulic cam chain tensioner to Twin Cam 88-equipped models. These Hydraulic Cam Chain Tensioners will significantly outlast the spring loaded tensioners and are an ideal addition to an engine modified for improved performance. In addition, '02-'06 models utilize a Twin Cam 96 single row front roller chain and sprocket (included in kit). '99-'01 models use Original Equipment front silent chain and sprocket to retain the cam position sensor function. The kit includes an improved Screamin' Eagle High-Flow Oil Pump that provides increased oil pressure at high-operating temperatures. This kit increases the oil supply by 23% and scavenging by 50% when compared to the '99-'05 Original Equipment oil pump and reduces operating temperature of bearings to improve bearing life.

This item can only be used on the following Harley-Davidsons.

  • DYNA

    • FXD (2000-2005)
    • FXDC (2005)
    • FXDCI (2005)
    • FXDI (2004-2005)
    • FXDL (2000-2005)
    • FXDLI (2004-2005)
    • FXDS CONV (2000)
    • FXDWG (2000-2005)
    • FXDWG2 (2001)
    • FXDWG3 (2002)
    • FXDWGI (2004-2005)
    • FXDX (2000-2005)
    • FXDXI (2004-2005)
    • FXDXT (2001-2003)
  • Softail

    • FLST (2006)
    • FLSTC (2000-2006)
    • FLSTCI (2001-2006)
    • FLSTF (2000-2006)
    • FLSTFI (2001-2006)
    • FLSTI (2006)
    • FLSTN (2005-2006)
    • FLSTNI (2005-2006)
    • FLSTS (2000-2003)
    • FLSTSC (2005-2006)
    • FLSTSCI (2005-2006)
    • FLSTSI (2001-2003)
    • FXST (2000-2006)
    • FXSTB (2000-2006)
    • FXSTBI (2001-2006)
    • FXSTD (2000-2006)
    • FXSTDI (2001-2006)
    • FXSTI (2001-2006)
    • FXSTS (2000-2006)
    • FXSTSI (2001-2006)
  • Touring

    • FLHR (2000-2006)
    • FLHRCI (2000-2006)
    • FLHRI (2000-2006)
    • FLHRS (2004-2006)
    • FLHRSI (2004-2006)
    • FLHT (2000-2006)
    • FLHTC (2000-2005)
    • FLHTCI (2000-2006)
    • FLHTCUI (2000-2006)
    • FLHTI (2003-2006)
    • FLHX (2006)
    • FLHXI (2006)
    • FLTR (2000-2002)
    • FLTRI (2000-2006)
