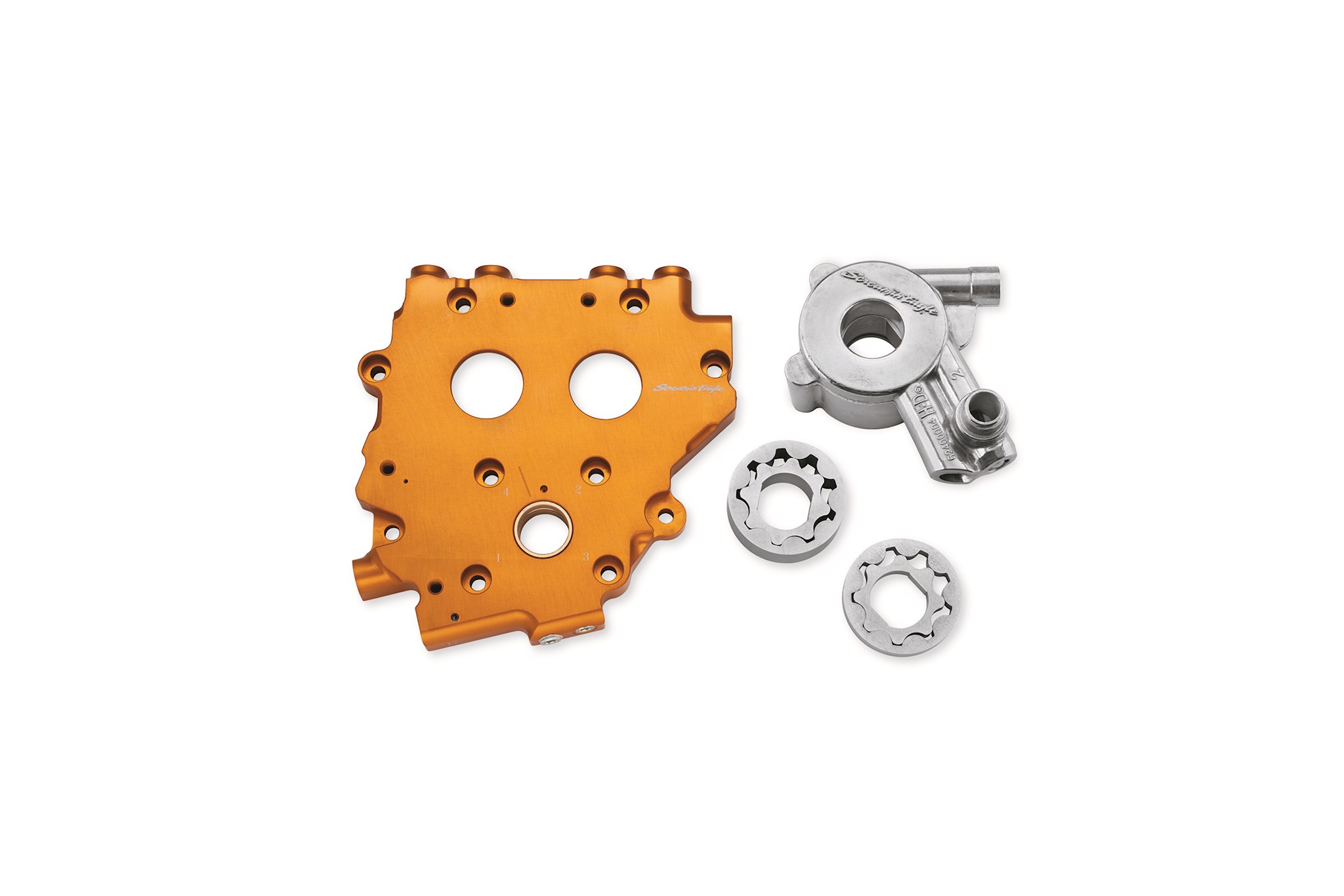

Screamin' EagleBillet Cam Support Plate with High-Volume Oil Pump

Part Number:

25282-11

634.81

A great upgrade for any performance motor. The Billet Cam Support Plate is manufactured from billet aluminum with pressed-in bronze bushings and is pre-assembled with the crankshaft bushing and oil pressure relief valve. Aluminum is specified at 6061 billet plate, heat-treated to T6 specifications with a surface-hardened anodized finish to provide superior strength, rigidity and durability. CNC-precision machining ensures precise dimensions and constant material thickness across the plate, enabling perfect alignment of cams and chains. Cam bushings are made from 660 bronze materials to provide enhanced wear resistance and to stand up to increased loads from the high lift cams common in large displacement motors. The improved Screamin' Eagle high-flow oil pump provides higher pressure when the oil is hot to keep pressure drops to a minimum and increases the oil supply by 16% and the scavenging by 29% over the '06-'17 Original Equipment oil pump.

This item can only be used on the following Harley-Davidsons.

  • DYNA

    • FLD (2012-2016)
    • FXD (2007-2010)
    • FXDB (2007-2017)
    • FXDBI (2006)
    • FXDC (2007-2014)
    • FXDCI (2006)
    • FXDF (2008-2017)
    • FXDFSE (2009)
    • FXDFSE2 (2010)
    • FXDI (2006)
    • FXDI35 (2006)
    • FXDL (2014-2017, 2007-2009)
    • FXDLI (2006)
    • FXDLS (2016-2017)
    • FXDSE (2007)
    • FXDSE2 (2008)
    • FXDWG (2010-2017, 2007-2008)
    • FXDWGI (2006)
  • Softail

    • FLS (2012-2017)
    • FLSS (2016-2017)
    • FLSTC (2007-2017)
    • FLSTF (2007-2017)
    • FLSTFB (2010-2016)
    • FLSTFBS (2016-2017)
    • FLSTN (2007-2017)
    • FLSTNSE (2014-2015)
    • FLSTSB (2008-2011)
    • FLSTSC (2007)
    • FLSTSE (2010)
    • FLSTSE2 (2011)
    • FLSTSE3 (2012)
    • FXCW (2008-2009)
    • FXCWC (2008-2011)
    • FXS (2011-2013)
    • FXSB (2013-2017)
    • FXSE (2016-2017)
    • FXST (2007)
    • FXSTB (2007-2009)
    • FXSTC (2007-2010)
    • FXSTD (2007)
    • FXSTSSE (2007)
    • FXSTSSE2 (2008)
    • FXSTSSE3 (2009)
  • Touring

    • FLHR (2007-2016)
    • FLHRC (2007-2013)
    • FLHRS (2007)
    • FLHRSE3 (2007)
    • FLHRSE4 (2008)
    • FLHRSE5 (2013)
    • FLHRSE6 (2014)
    • FLHT (2007-2009)
    • FLHTC (2007-2013)
    • FLHTCU (2007-2016)
    • FLHTCUL (2015-2016)
    • FLHTCUSE2 (2007)
    • FLHTCUSE3 (2008)
    • FLHTCUSE4 (2009)
    • FLHTCUSE5 (2010)
    • FLHTCUSE6 (2011)
    • FLHTCUSE7 (2012)
    • FLHTCUSE8 (2013)
    • FLHTK (2010-2016)
    • FLHTKL (2015-2016)
    • FLHTKSE (2014-2016)
    • FLHX (2007-2016)
    • FLHXS (2014-2016)
    • FLHXSE (2015-2016, 2010)
    • FLHXSE2 (2011)
    • FLHXSE3 (2012)
    • FLHXXX (2010-2011)
    • FLTR (2007-2009)
    • FLTRSE3 (2009)
    • FLTRU (2016, 2011-2013)
    • FLTRUSE (2015-2016, 2011)
    • FLTRX (2015-2016, 2010-2013)
    • FLTRXS (2015-2016)
    • FLTRXSE (2012)
    • FLTRXSE2 (2013)
  • Trike

    • FLHTCUTG (2009-2016)
    • FLRT (2015-2016)
